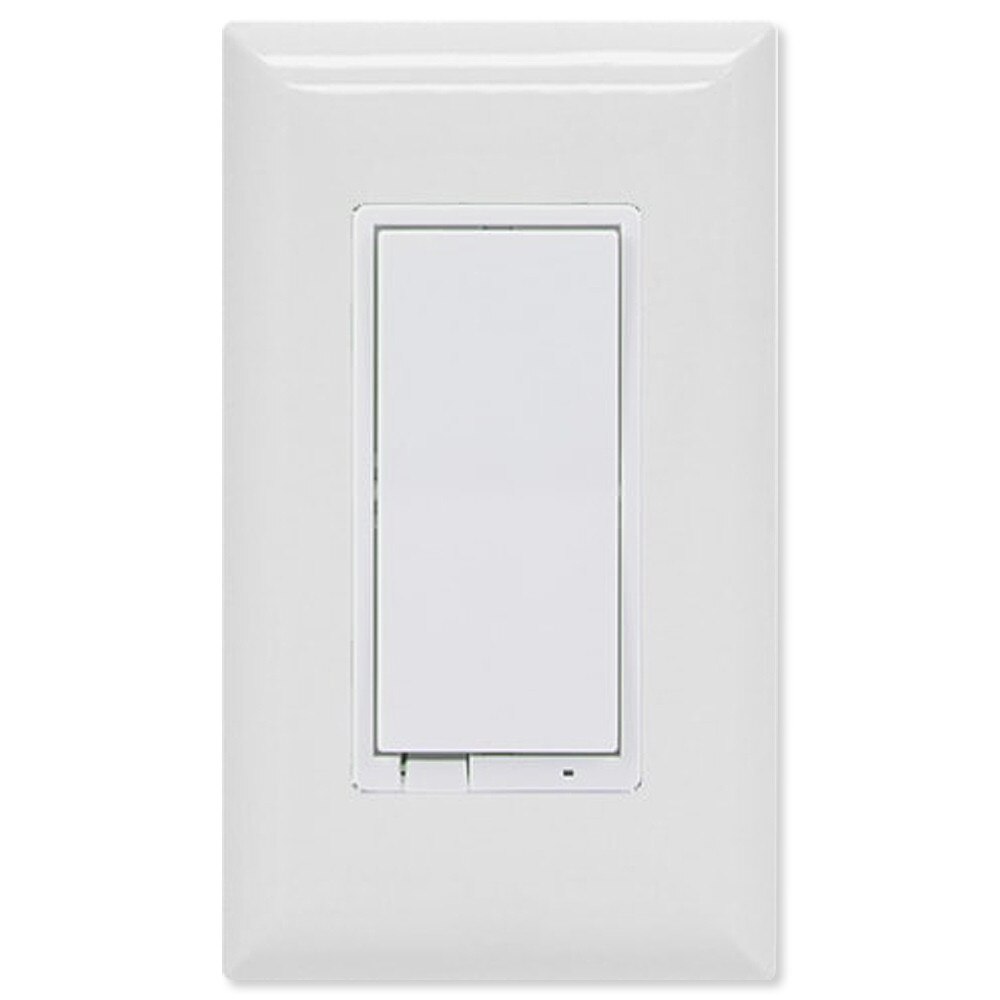

The Jasco Z-Wave Plus Smart Dimmer With QuickFit And SimpleWire adds Z-Wave remote and local On/Off/Dim/Brighten control for a wired light or appliance. The dimmer switch can be installed in single or multi-way wire applications and included in multiple automation scenes. A blue LED indicator leads you to the switch in the dark.
- Works with dimmable incandescent, LED, CFL, and halogen lighting
- Supports loads up to 960W, incandescent, 1/2 HP, or 1800W(15A) resistive
- Range up to 150 ft (line of sight) between the closest Z-wave receiver and wireless controller
- Suitable for single-pole or multi-pole applications
- Can be included in multiple automated groups or scenes
- Uses a standard decorative-size wallplate (sold separately)
- The primary switch must be connected to the power and up to 4 add-on switches can be controlled.
Getting to know your new Z-Wave device
• Turn ON/OFF and adjust dim levels manually or remotely via the Z-Wave
controller
• Can be included in multiple groups and scenes
• May be used in single-pole installation or with up to four Jasco Add-on Switches in
3-way or 4-way wiring configurations
• Compatible with all incandescent and most dimmable CFL/LED bulbs
• Auto line/load detection
• Interchangeable paddle switch — white & light almond paddle in package
• Uses a standard, decorative-size wall plate for single-gang installations
(wall plate not included)
• Blue LED indicates dimmer location in a dark room
• Z-Wave certified for simple pairing and integrated home automation
• Screw terminal installation — requires wiring connections for line (hot), load,
neutral and ground. Traveler wire required for 3-way or 4-way installation
• This Z-Wave device has advanced features that allow you to customize your
experience. These features can only be adjusted by a Z-Wave enabled controller
that supports the Z-Wave configuration command class. For a complete list of
adjustable configurations, visit www.ezzwave.com/config
How to pair/add switch from hub:
- Press the black button on the hub, between the two antennas.
- Look for the blue light on the hub to start flashing green.
- Tap the top of the paddle, then tap the bottom of the paddle.
- The hub should start to flash multi-color (red, green, blue).
- If using software/app, refresh to verify device has been added.
How to remove/unpair switch from hub:
- Press the red button on the hub, between the two antennas.
- Look for the blue light on the hub to start flashing green.
- Tap the top of the paddle, then tap the bottom of the paddle.
- The hub should start to flash multi-color (red, green, blue).
- If using software/app, refresh to verify device has been removed.
To return your switch to factory defaults
1. Quickly press ON (top) button three times then
immediately press the OFF (bottom) button three times.
The LED will flash ON/OFF five times when completed
successfully.
Note: This should only be used if your network’s primary
controller is missing or otherwise inoperable.
Wiring Guide:
Add-on Switches:
For more in depth instructions on Installations instructions, please refer to the manual attached to this article.
